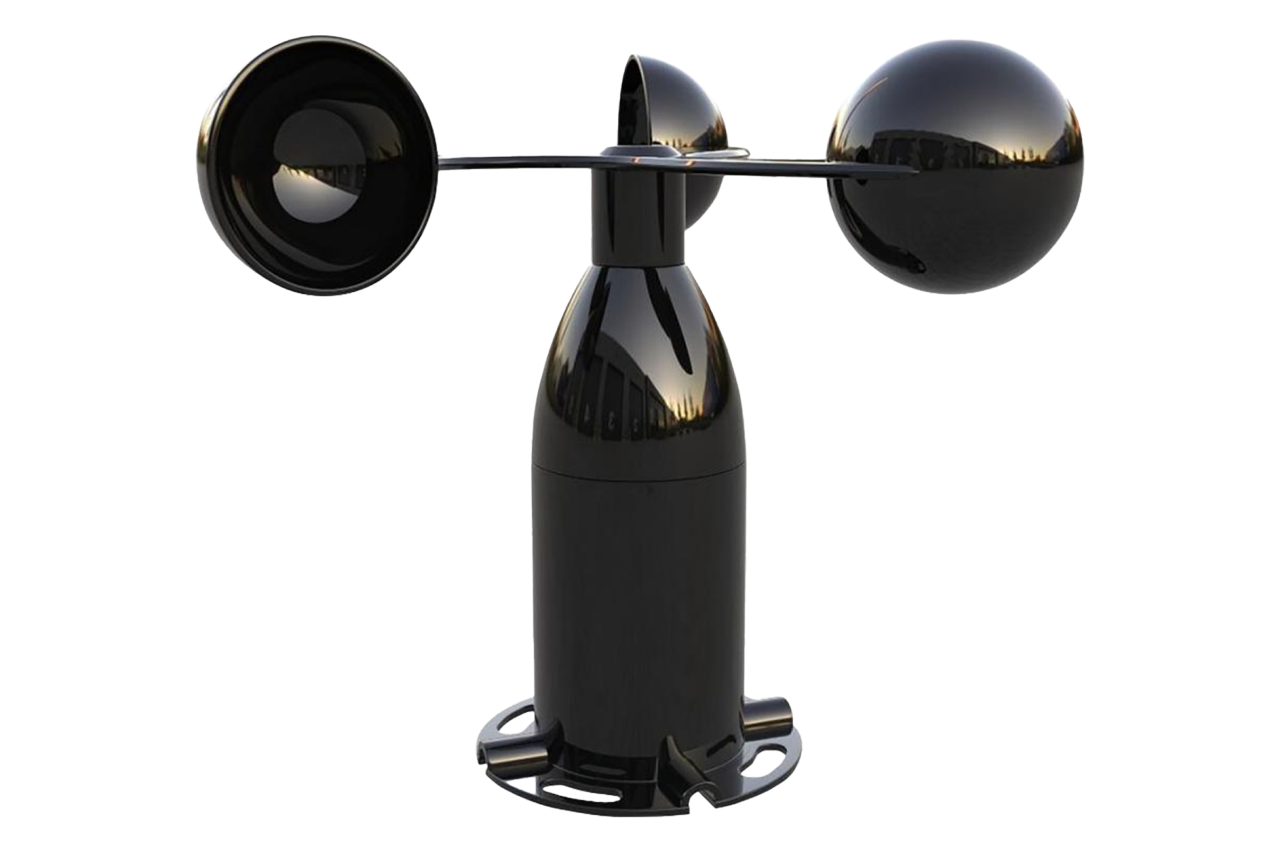

Wind speed sensor 50m/s with 4-20mA output

This outdoor wind speed meter is a three-cup sensor with low start speed which can measure wind speed up to 50m/s (180km/h). The TDS12287AL is particularly useful to protect motorised outdoor shades and comparable devices, to avoid damage from high wind speed.

On the TDS system, the wind speed can be visualised as actual wind speed on the TELETASK touch panels, touch screens and also on mobile devices like a smartphone.
On the OPUS and MAIOR touch screens you can have wind speed line graphs of today, last week, last month and last year.

The wind speed output signal of the sensor is a 4-20mA current loop signal which means that the TDS system can also detect a broken wire or sensor failure. In such case it can take the shield in at that moment of error and send a ‘wind sensor error’ message to a touch screens.
