MULTISENSOR

Intelligent air quality monitoring integrated into the TELETASK system

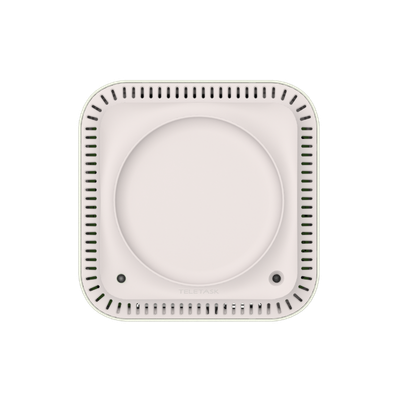

A healthy indoor climate starts with reliable measurements. The TELETASK MULTISENSOR combines several high-quality environmental sensors in one compact AUTOBUS interface. Depending on the version, temperature, relative humidity, VOCs, CO₂, air pressure and particulate matter (PM1.0, PM2.5 and PM10) are monitored continuously.

But the MULTISENSOR does more than measure. Thanks to its full integration with the TELETASK home automation system, readings are not only displayed on AURUS-OLED, PENTUS, OPUS, MAIOR and the ATMOS app, but are also used directly to intelligently control HVAC (ventilation, heating and cooling).

Using adjustable threshold values, the system can respond automatically to changes in air quality. Ventilation is dynamically adjusted to meet current needs, resulting in optimal comfort, lower energy consumption and a healthier indoor climate. TELETASK’s integrated ventilation engine continuously monitors and optimises this control.

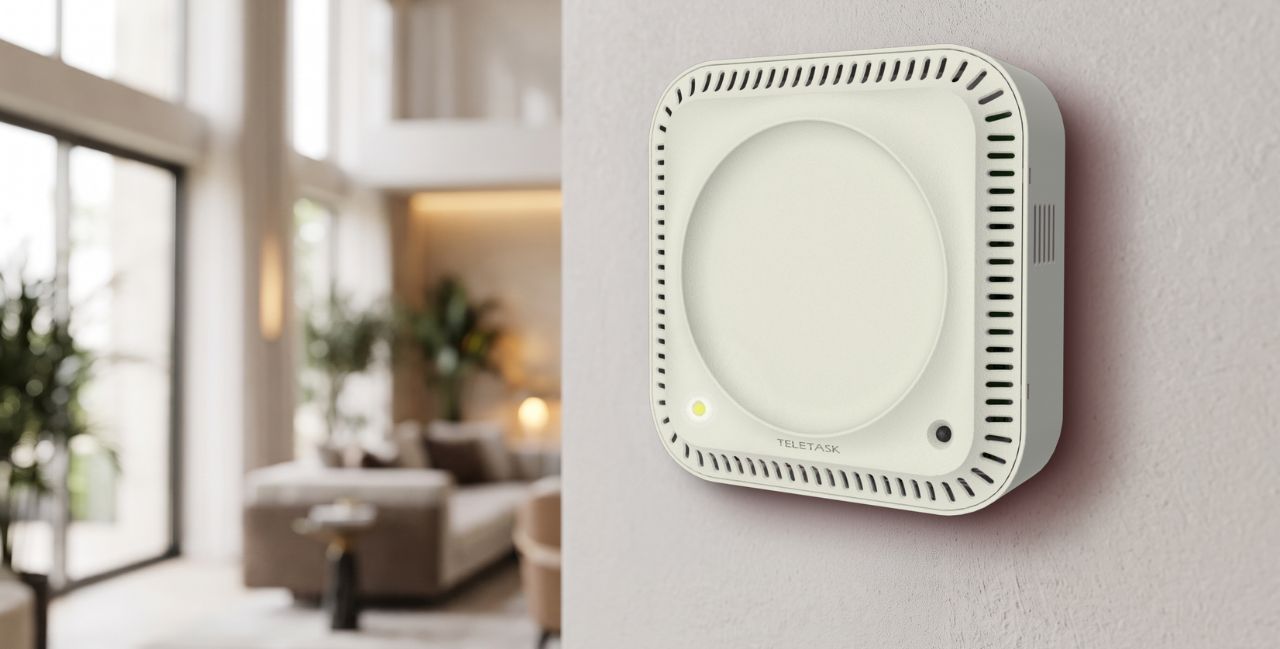

The MULTISENSOR’s multicolour status LED shows air quality at a glance, from green (excellent) to red (very poor). If required, a built-in buzzer can alert users when air quality reaches a critical level.

The MULTISENSOR is available in three versions:

ESSENTIAL (3 sensors)

Temperature, relative humidity and VOCs.

SAFE (5 sensors)

Adds CO₂ and air pressure monitoring for accurate monitoring of living spaces, bedrooms, offices, restaurants, meeting rooms and other occupied areas.

PURE (6 sensors)

The most comprehensive version, including particulate matter monitoring (PM1.0, PM2.5 and PM10) for a complete assessment of indoor air quality.

In addition to ventilation control, measured values can also automatically activate notifications, technical alarms, lighting, motorised windows and other connected functions.

TELETASK MULTISENSOR: from air quality monitoring to intelligent building control.
