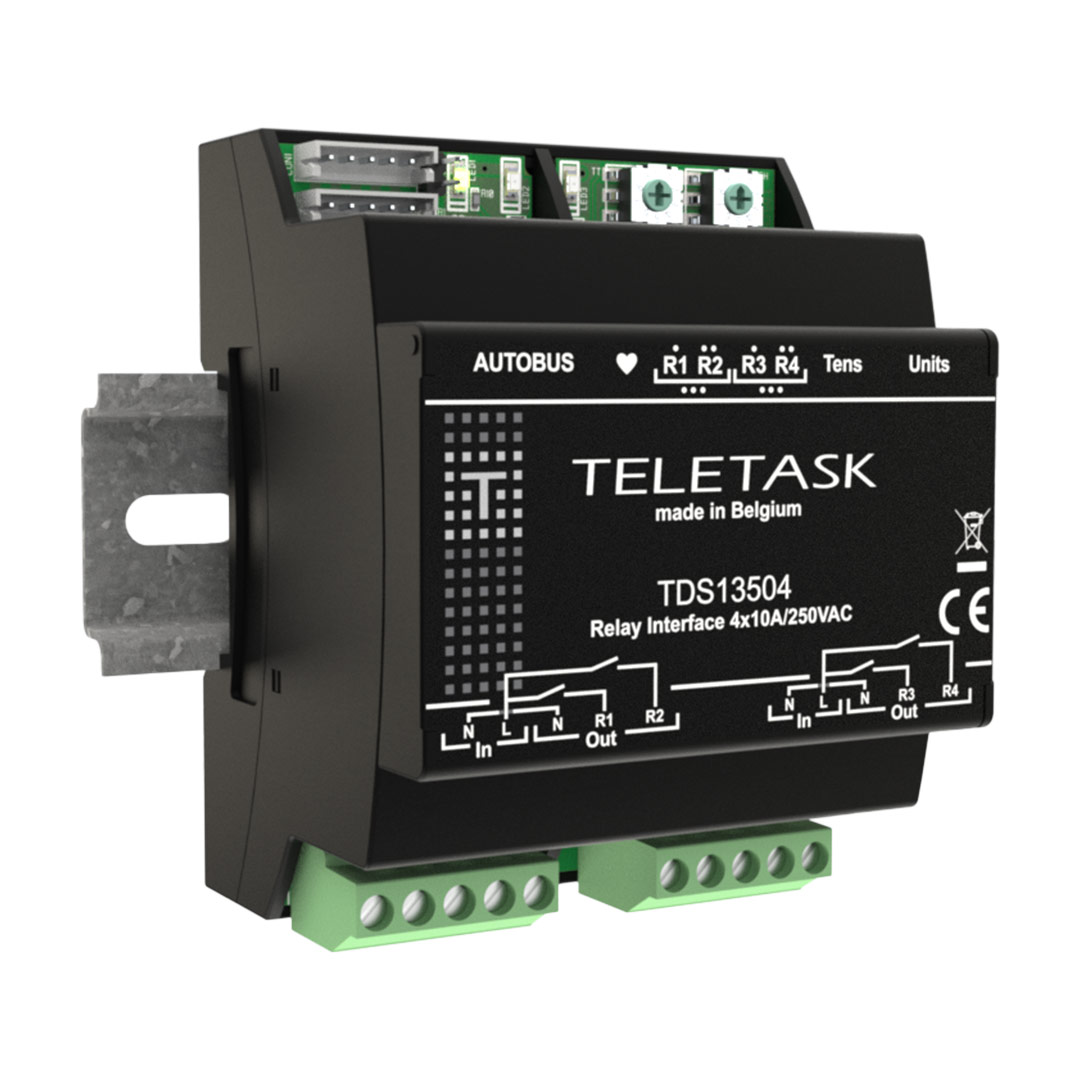

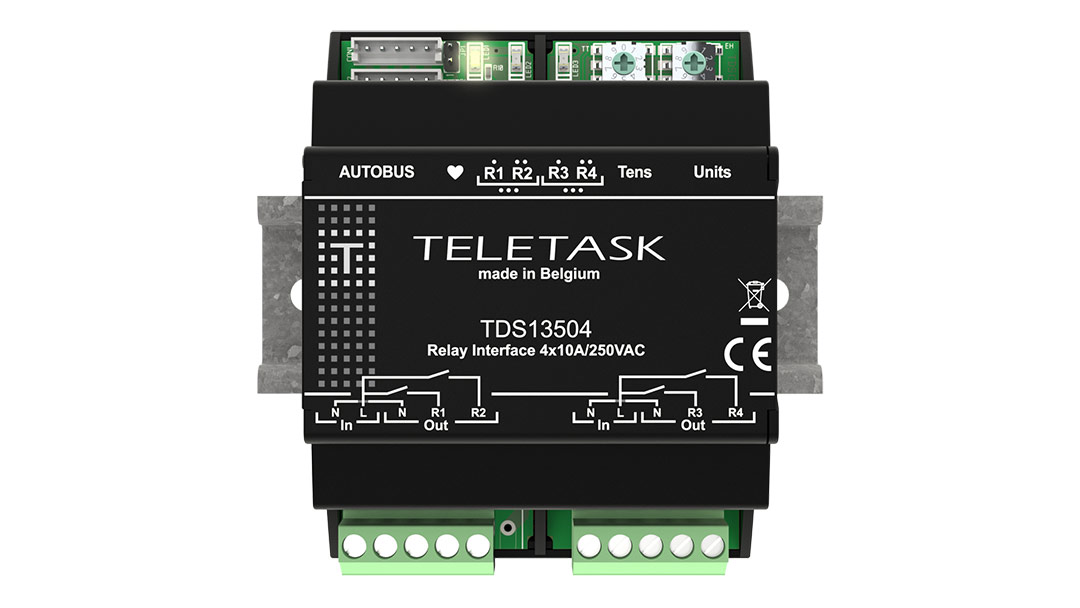

Relay interface 4x10A/250VAC

Relay interface with four single pole power relay contacts; each 10A/250VAC for general purpose ON/OFF control.

Use this interface to control low power devices such as lights, door openers, contactors etc. If capacitive loads are used, please refer to the TELETASK inrush current- table for maximum load.
The interface is DIN rail compatible. This interface is a small version of TDS13512 and TDS13510. If you need 8x10A you can use TDS13512. If you need a higher power capability like for wall sockets, please use TDS13510 (8x16A)

dots Specifications
Order reference TDS13504
Relays 4 single pole, normal open
Switching power per relay output 10A/250V
DIN-rail mounting 4 Modules wide
dots Download
Datasheet TDS13504
